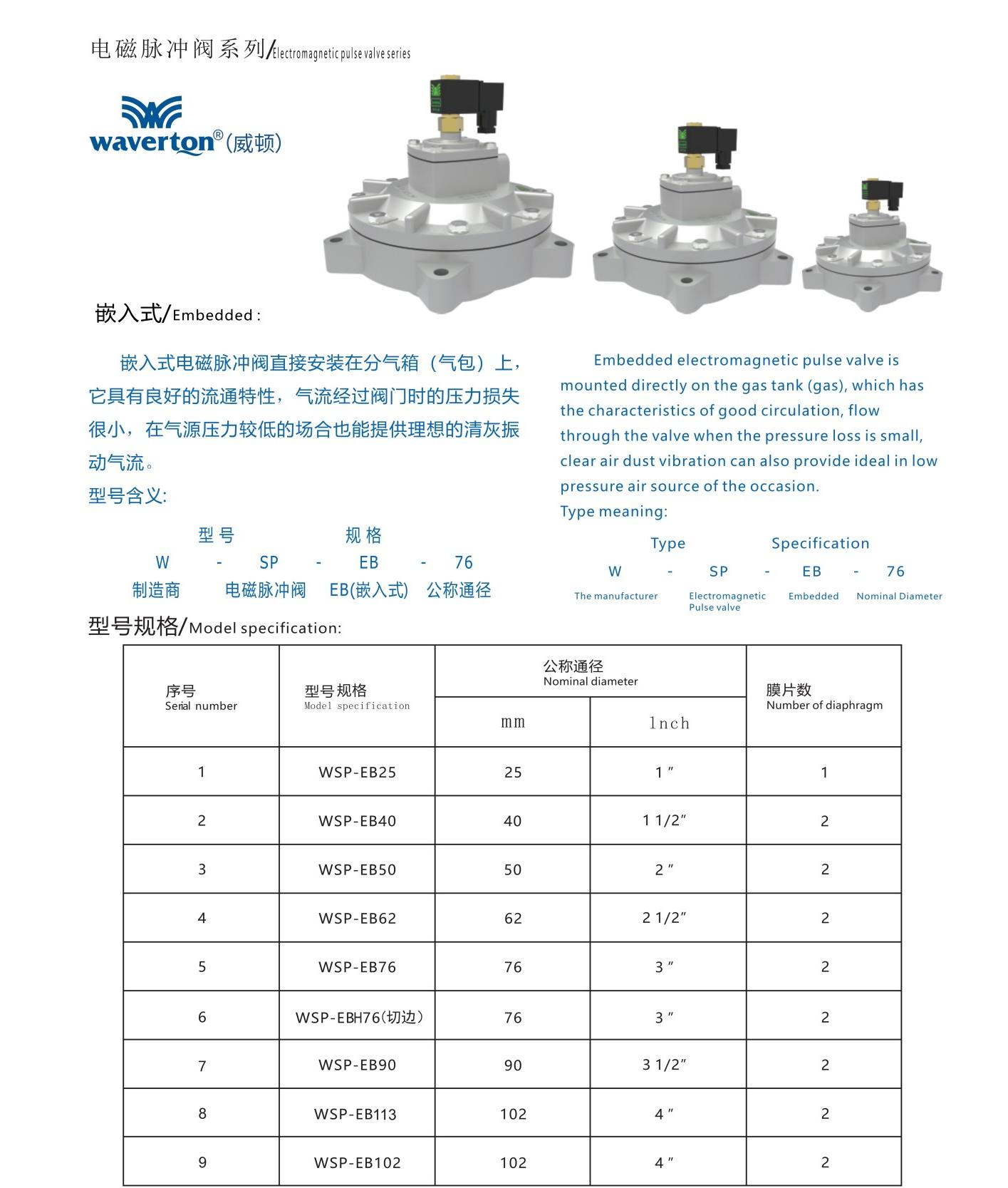

The WSP-EB electromagnetic pulse valve can be directly installed on the distribution box (airbag), hence it is called a submerged valve (also known as an embedded valve or low-pressure valve). It has good flow characteristics and minimal pressure loss when the airflow passes through the valve. Therefore, it can provide ideal dust cleaning vibration airflow even when the gas source pressure is low. This type of pulse valve is suitable for cleaning various filter elements such as filter bags (round bags, irregular bags, metal fiber bags), filter cartridges, ceramic tubes, and plastic fired plates

Product Features

Simple construction, easy installation, time-saving and labor-saving.

The pulse valve housing is all die cast, without defects such as sand holes, air holes, cracks, etc., and the housing has high strength.

The coil shell components are made of epoxy resin, which has better insulation, waterproof, and temperature resistance than thermoplastic.

All diaphragms adopt imported diaphragms, with long service life and strong anti-aging performance.

The springs are all made of stainless steel winding, which has strong corrosion resistance.

All connecting screws are made of stainless steel material, with strong corrosion resistance. The compression connecting thread is 3-4 times that of the cutting thread.

The sealing gasket is made of polymer material with good sealing performance.

The product has undergone special surface treatment and is corrosion-resistant.

The gas flow capacity of the pulse valve is superior to similar products.

The safety level coefficient is higher than that of similar products.

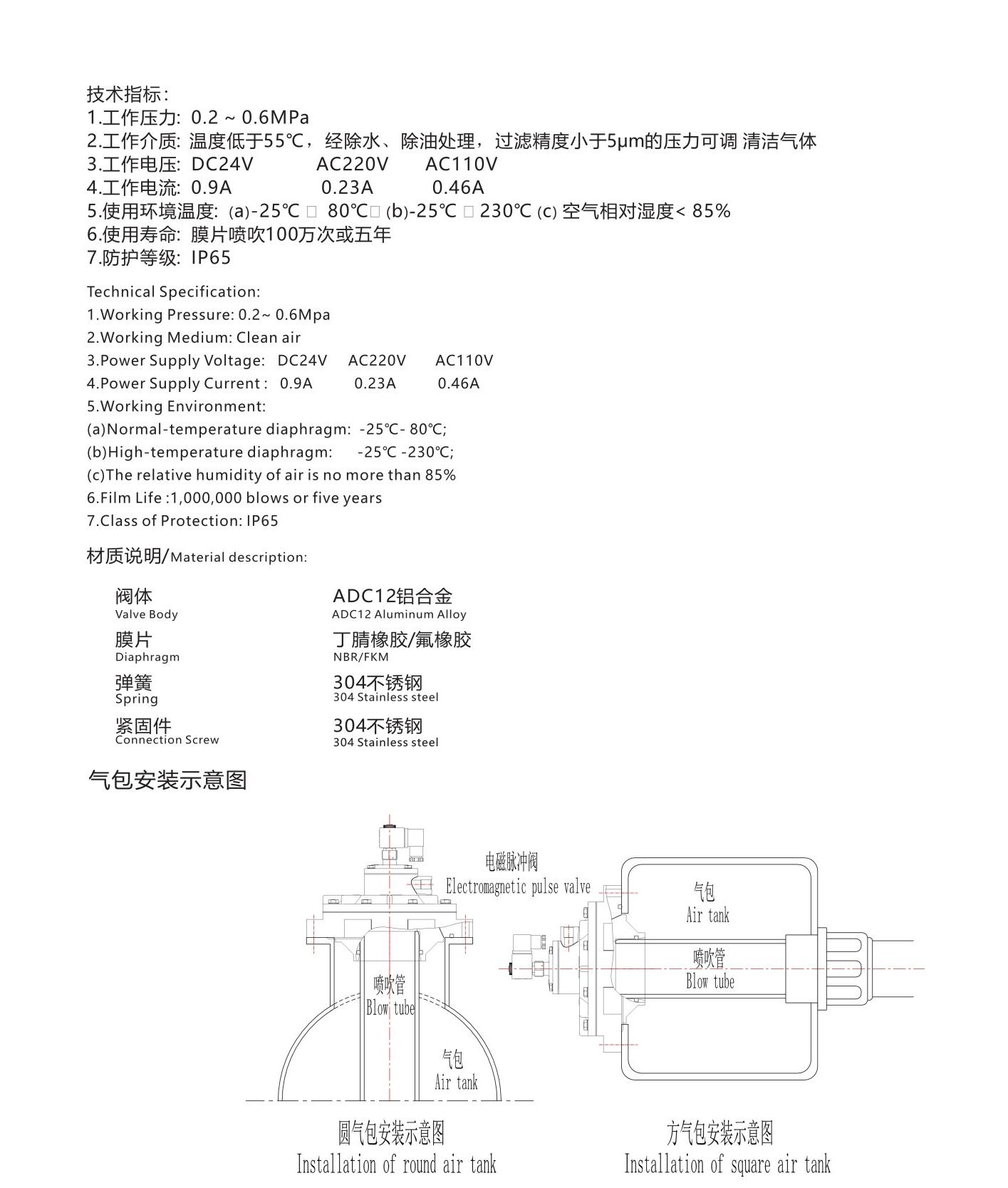

working environment

Working pressure 0.15~0.6Mpa

Clean air for working medium

Working voltage DC24 ± 10%, AC220V ± 10%

Working current 0.23~0.9 A

The temperature ranges from -10 ℃ to+55 ℃, and the relative humidity of the air does not exceed 85%.

Service life: 1 million times of membrane spraying or five years
