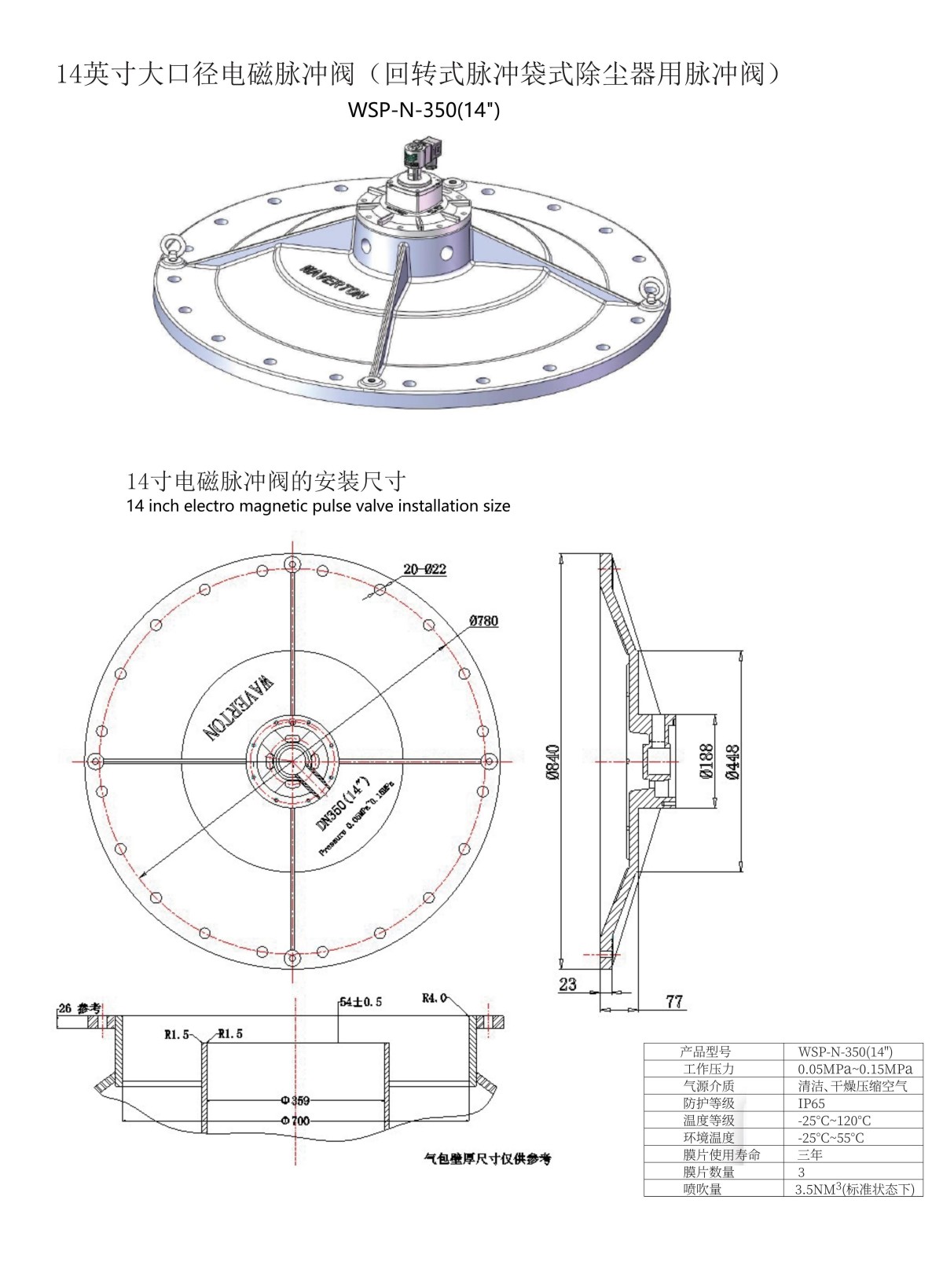

WSP-N350 (14 ") model, performance parameters:
Working pressure: 0.05MPa~0.15MPa
Gas source medium: clean and dry compressed gas
Protection level: IP65
Voltage: DC24V/AC220V (with voltage markings on the coil)
Allowable fluid temperature range: -25 ° C~120 ° C
Pulse valve operating environment temperature: -25 ° C~85 ° C
Lifespan of the membrane: 1 million sprays or 5 years
Material Description:
Valve body: Aluminum alloy
Pilot components: 430FR stainless steel and other materials
Membrane: Imported finished membrane
Spring: 304 stainless steel
