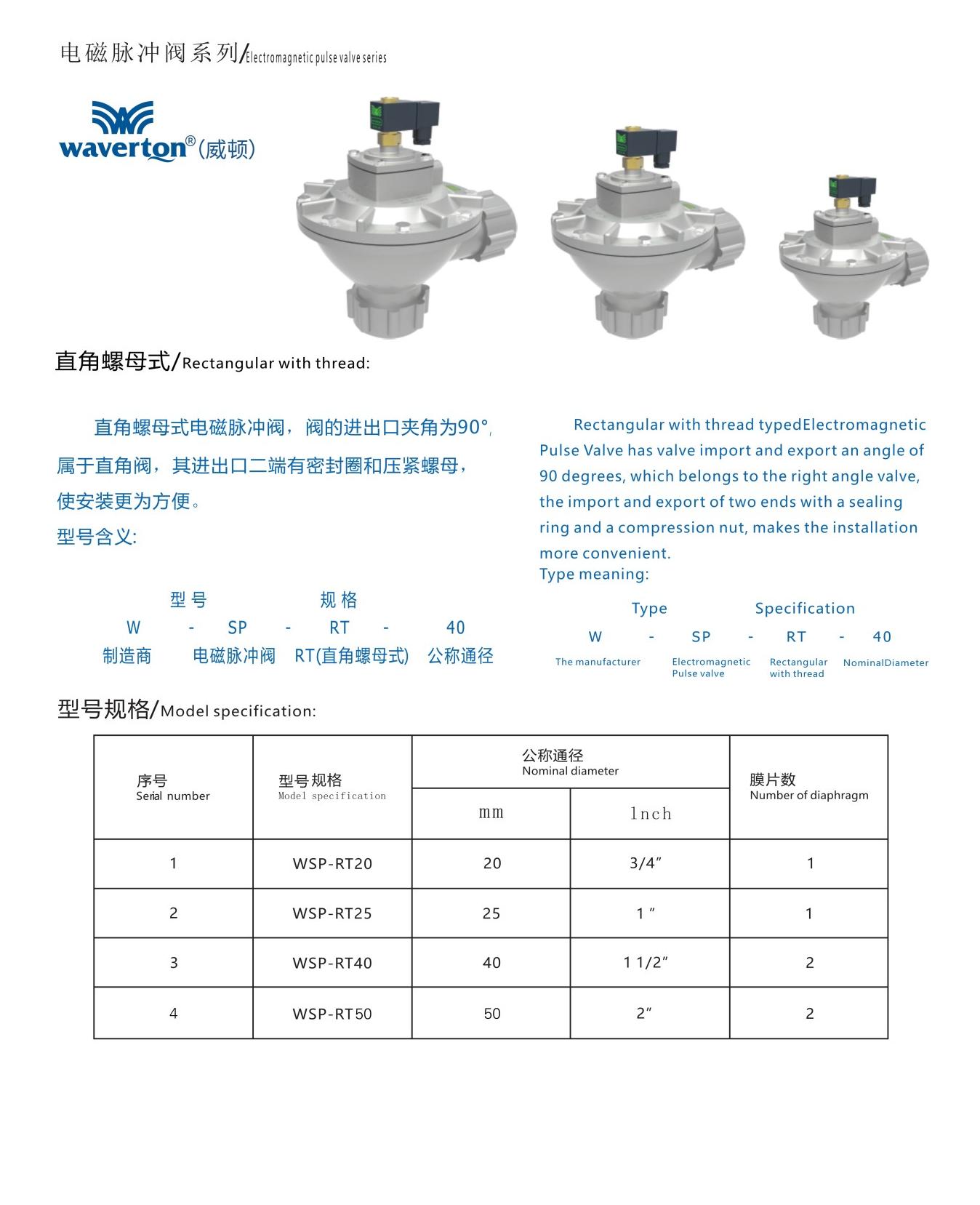

The inlet and outlet angle of WSP-RT electromagnetic pulse valve is 90 °, which belongs to a right angle valve. There are sealing rings and compression nuts at both ends of the inlet and outlet, making installation more convenient and fast; Suitable for cleaning various filter bags (round bags, irregular bags, metal fiber bags), filter cartridges, ceramic tubes, and plastic fired plates and other filter elements.

Product Features

-Simple construction, easy installation, time-saving and labor-saving.

-The pulse valve housing is all die cast, without defects such as sand holes, air holes, cracks, etc., and the housing has high strength.

-The coil shell components are made of epoxy resin, which has better insulation, waterproof, and temperature resistance than thermoplastic.

-All diaphragms adopt imported diaphragms, with long service life and strong anti-aging performance.

-The springs are all made of stainless steel winding, which has strong corrosion resistance.

-All connecting screws are made of stainless steel material, with strong corrosion resistance. The compression connecting thread is 3-4 times that of the cutting thread.

-The sealing gasket is made of polymer material with good sealing performance.

-The product has undergone special surface treatment and is corrosion-resistant.

-The gas flow capacity of the pulse valve is superior to similar products.

-The safety level coefficient is higher than that of similar products.

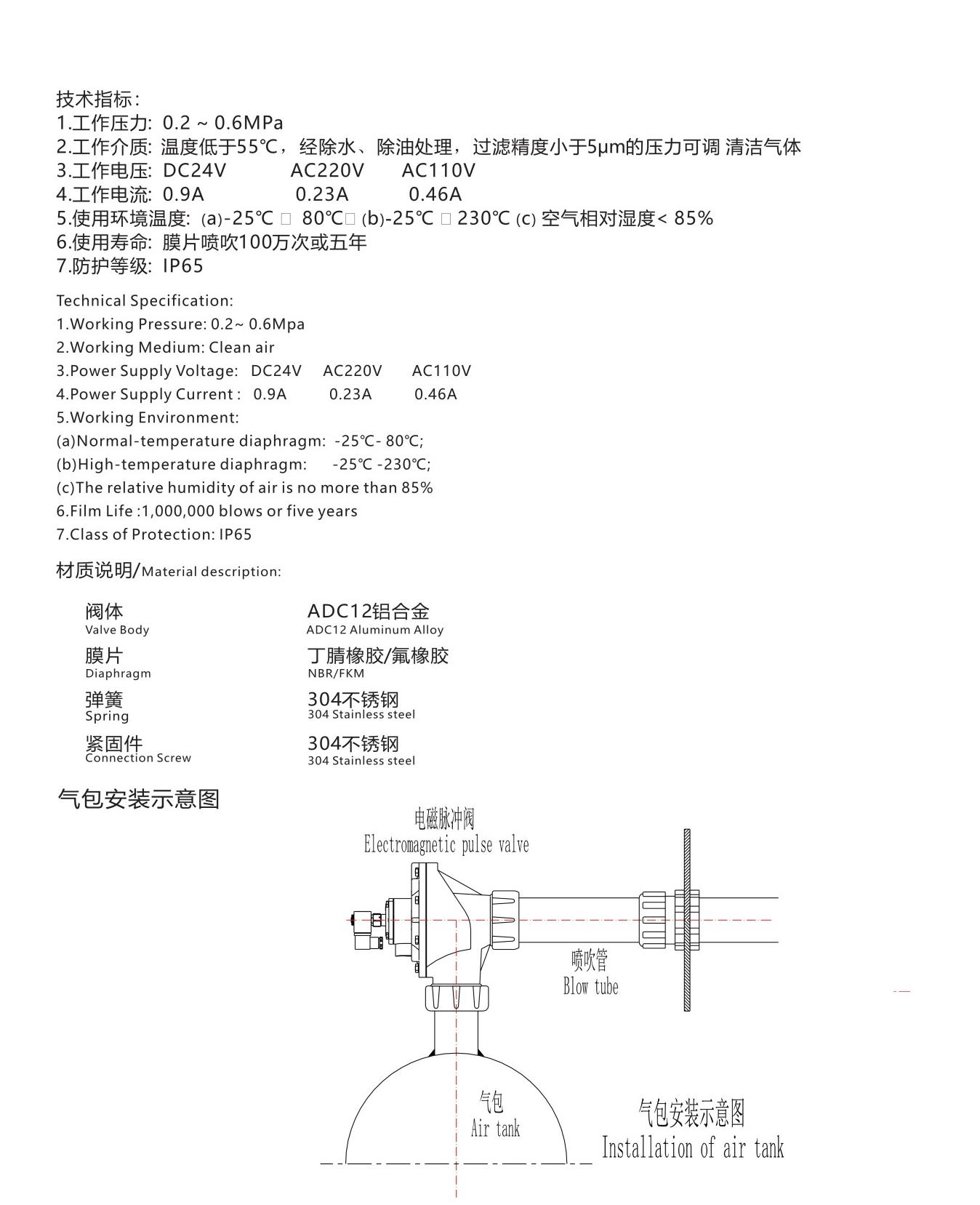

working environment

Working pressure 0.15~0.6Mpa

Clean air for working medium

Working voltage DC24 ± 10%, AC220V ± 10%

Working current 0.23~0.9 A

The temperature ranges from -10 ℃ to+55 ℃, and the relative humidity of the air does not exceed 85%.

Service life: 1 million times of membrane spraying or five years
